Solder Station V2 Pcb Cad done

Going from idea to schematic and board layout makes the project feel more realistic.

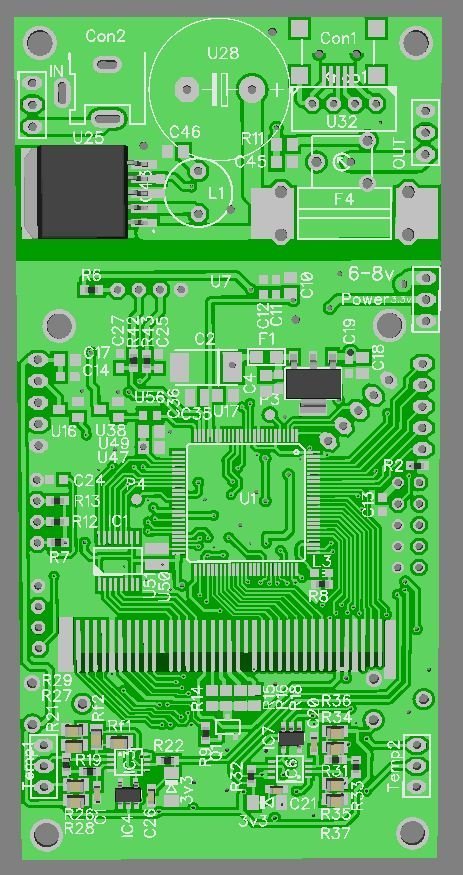

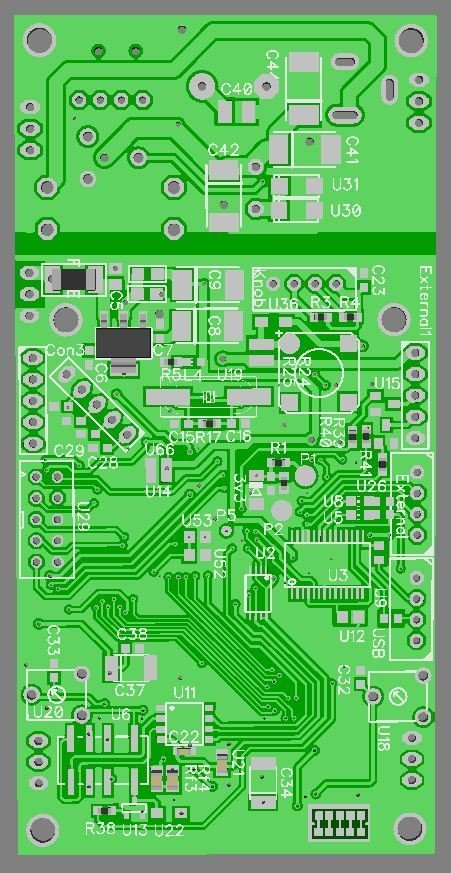

Going from idea to schematic and board layout makes the project feel more realistic. Will be even better when the housing cad part is done. I have sent the pcb gerber files to seeedstudiowhich is great, nice price and have always been fast. Usually i prefer to use DHL, but for this project time is not critical so it will be fine with normal china mail.
